Hydraulic Corner Notching Machine, Fixed Angle with Punch Manufacturer

Hydraulic Corner Notching Machine, Fixed Angle with Punch

Request a Quote

Website: http://cnc-lasercutting.com/10-2-fix-angle-hydraulic-corner-notcher.html

Parameters
1. Voltage: 220V/380V
2. Cutting Angle: Fixed 90 degree
3. Rated Power: 4KW
4. Warranty: 3 Year

Description:

This fixed angle hydraulic notching machine has a notching angle of 90 degree. It can adjust the blade clearance according to the thickness of sheet metal. Single-step or multi-steps lubrication available. This fixed angle corner notcher features affordable price and high efficiency.

Details:

Technical Specifications:

No.	Model		Unit	3X200	4X250	6X250	8X300	10X300
1	Max. Plate Thickness	CS	mm	0.5‐3	0.5‐4	0.5x6	1.0‐8	1.0‐10
1	Max. Plate Thickness	SS	mm	0.5‐1.5	0.5‐2.0	0.5‐3.0	1.0‐4.0	1.0‐5.0
2	Max. Plate Length		mm	200	250	250	300	300
3	Cutting Angle Range		(°)	90	90	90	90	90
4	Stroke per Min.		n/min	40	35	35	30	25
5	Worktable Height		mm	810	850	850	900	900
6	Motor Power		kw	3	4	4	5.5	5.5
	Dimension	Length	mm	810	910	910	950	1020
7		Width	mm	720	760	810	820	1190
		Height	mm	980	1050	1050	1150	1190
8	Weight		KG	590	680	710	850	1120

Parts Manufacturer:

No.	Accessory	Brand
1	Motor	Siemens‐Germany	Standard
2	Valve Block	TAIFENG‐China	Standard
3	Oil Pump	HANGFA‐Shanghai	Standard
4	Pedal Switch	People Appliance‐Shanghai	Standard
5	Electric	Schneider‐France	Standard
6	Valve Block	Bosch Rexroth‐Germany	Standard
7	Oil Pump	Sunny‐USA	Standard
8	Pedal Switch	KACON‐South Korea	Standard

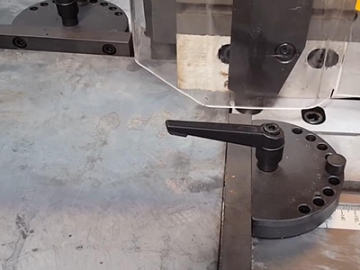

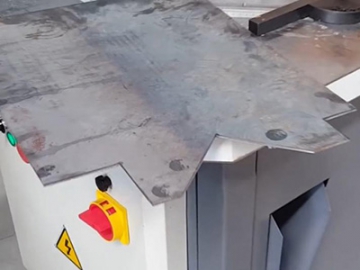

Samples Display:
