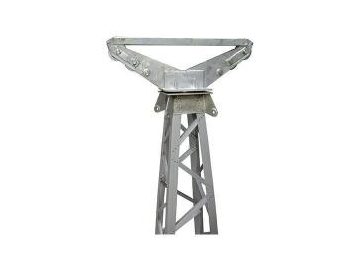

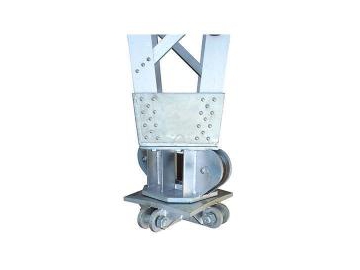

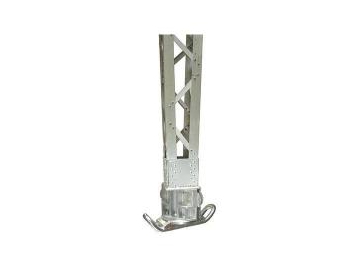

Aluminum Alloy Lattice Gin Pole
Request a Quote
Uses: To assemble and erect the tower and pole in transmission and distribution construction.
Notes:
1. Use high strength angle aluminum alloy as main materials, steel parts are galvanized.
2. The safety factor is 2.5
3. Model whose postfix "A" means it is universal and "B" means strengthened
Aluminum Alloy Inner-suspended Lattice Gin Pole
Item number | Model | Length | Allowable axial load | Cross section | Weight | Remarks |
(m) | (kN) | (mm) | (kg/m) | |||

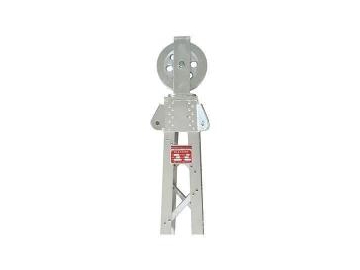

03119 | LBNX250-8 | 8 | 37 | □250 | 10.5 | Single pulley, |
03120 | LBNX250-9 | 9 | 29 | 2sets waist loop | ||
03121 | LBNX250-10 | 10 | 23 | |||
03122 | LBNX250-11 | 11 | 19 | |||
03123 | LBNX250-12 | 12 | 16 | |||
03124 | LBNX250-13 | 13 | 13 | |||
03125 | LBNX250-14 | 14 | 11 | |||
03126 | LBNX250-15 | 15 | 10 | |||

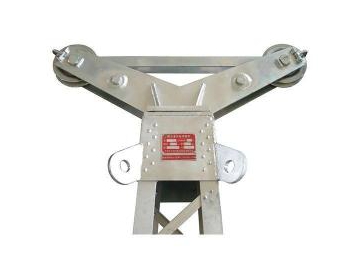

03131 | LBNX300-11 | 11 | 29 | □300 | 11 | Double pulley, |
03132 | LBNX300-12 | 12 | 24 | 2sets waist loop | ||
03133 | LBNX300-13 | 13 | 22 | |||
03134 | LBNX300-14 | 14 | 18 | |||
03135 | LBNX300-15 | 15 | 16 | |||
03136 | LBNX300-16 | 16 | 13 | |||
03137 | LBNX300-17 | 17 | 12 | |||
03138 | LBNX300-18 | 18 | 11 | |||
03141 | LBNX350-11 | 11 | 40 | □350 | 13.5 | Double pulley, |
03142 | LBNX350-12 | 12 | 33 | 2sets waist loop | ||
03143 | LBNX350-13 | 13 | 30 | |||
03144 | LBNX350-14 | 14 | 24 | |||
03145 | LBNX350-15 | 15 | 21 | |||
03146 | LBNX350-16 | 16 | 19 | |||
03147 | LBNX350-17 | 17 | 17 | |||
03148 | LBNX350-18 | 18 | 15 | |||
03151 | LBNX400-12 | 12 | 43 | □400 | 14.6 | Double pulley, |
03152 | LBNX400-13 | 13 | 38 | 2sets waist loop | ||
03153 | LBNX400-14 | 14 | 32 | |||
03154 | LBNX400-15 | 15 | 28 | |||
03155 | LBNX400-16 | 16 | 25 | |||
03156 | LBNX400-17 | 17 | 22 | |||
03157 | LBNX400-18 | 18 | 19 | |||
03158 | LBNX400-19 | 19 | 16 | |||
03159 | LBNX400-20 | 20 | 14 |
