Concrete Vibrator Shaft, Vibrator Head, RV Series
Request a Quote
RV series concrete vibrator poker head with flexible shaft is designed for the internal vibration and compaction of fresh concrete.
Our RV series vibrating poker heads are designed with self-adjusting device to make the its work more stable, which are more common for operating in Russia, Ukraine, Kazakhstan, etc.
Technical Data
| Model | Diameter(mm) | Length (mm) | Vibration frequency (Hz) | Vibration frequency (vpm) | Amplitude (half value) (mm) | Amplitude (total value) (mm) | Dia. of Flex. Hose D(mm) | Dia. of Flex. Shaft d(mm) | Weight of 4m Hose (kg) |
| RV50Ⅱ | 50 | 555 | 230 | 13800 | 1.2 | 2.4 | 36 | 13 | 20 |

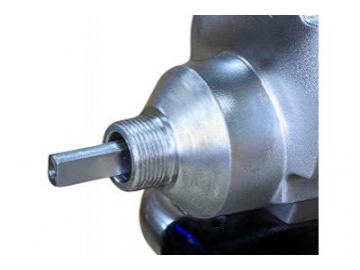

Connection
Connecting method: C/W RUSSIA Coupling
Adaptive Motor
