Slag Crushing and Grinding Plant Manufacturer

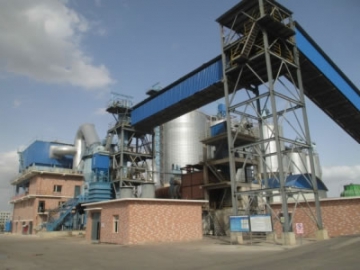

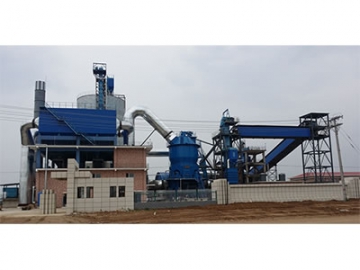

Slag Crushing and Grinding Plant

Request a Quote

Website: http://heavy-plant.com/2-1-coke-grinding-plant.html

Introduction

Capacity: 300~1,000 thousand tons/year

Feed Material Size: 2 mm~10 mm

Feed Material: Powdered material like feldspar, calcite, steatite, barite, fluorite, tombarthite, marble, ceramics, bauxite, manganese ore and phosphorus rock.

SINOMALY specializes in offering slag powder production line design, including the design, production and delivery of the vertical mill, installation of equipment sets, and general contracting of the production line construction.

Process: Slag Drying Machine → Extrusion Press→ Agglomerator →Powder Separator (Fine Powder) →Superfine Grinding Mill → Finished Product

Slag stack
Feeding equipment
Conveyer belt
Vibrating screen

Vertical mill
Products collection
Warehousing management system
External circulation system

Hot-blast stove system

Fine powder production line with vertical mill operation process:

Slag feeding equipment
Elevator
Dust collector
Vertical mill
Powder collector
Fan
Funnel
Conveyer belt
Hot-blast stove
Finished product storage

The stacked slag is taken and fed by the forklift, and conveyed using the the belt conveyor.
The slag is transported by the elevator into the vertical mill for grinding. The slag powder is then collected by the powder separator, and dried using a hot blast stove.
The dried slag powder is transported into the vertical mill for regrinding, after which the slag powder will be collected using a powder separator, then the qualified powder is moved to the finished product warehouse.

Our recommended optimal production line configurations are listed below.

150 thousand tons/year slag powder production line

Equipment	Parameters
LRMS22.2 vertical mill for slag	Capacity: ≥20t/h, Specific surface area of product: ≥420m²/kg, Power: 630kW
Hot-blast stove	Heating capacity: 0.4×107 kcal/h
Dust collector	Airflow: 80000 m³/h, Filter area: 1594 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa Airflow: 80000 m³/h Power: 220 kW

200 thousand tons/year slag powder production line

Equipment	Parameters
LRMS25.2 vertical mill for slag	Capacity: ≥28t/h, Specific surface area of product: ≥420m²/kg, Power: 900kW
Hot-blast stove	Heating capacity: 0.5×107 kcal/h
Dust collector	Airflow: 112000 m³/h, Filter area: 2196 m² Filtration velocity: 0.80～0.850.80m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 112000 m³/h Power: 315kW

300 thousand tons/year slag powder production line

Equipment	Parameters
LRMS36.3 vertical mill for slag	Capacity: ≥45 t/h, Specific surface area of product: ≥420m²/kg, Power: 1600 kW
Hot-blast stove	Heating capacity: 0.9×107 kcal/h
Dust collector	Airflow: 180000 m³/h, Filter area: 3659 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 180000 m³/h Power: 500 kW

450 thousand tons/year slag powder production line

Equipment	Parameters
vertical mill for slag	Capacity: ≥65 t/h, Specific surface area of product: ≥420m²/kg, Power: 2000 kW
Hot-blast stove	Heating capacity: 1.3×107 kcal/h
Dust collector	Airflow: 260000 m³/h, Filter area: 5352 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 260000 m³/h Power: 710 kW

500 thousand tons/year slag powder production line

Equipment	Parameters
LRMS38.3 vertical mill for slag	Capacity: ≥75 t/h, Specific surface area of product: ≥420m²/kg, Power: 2500 kW
Hot-blast stove	Heating capacity: 1.5×107 kcal/h
Dust collector	Airflow: 300000 m³/h, Filter area: 6116 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 300000 m³/h Power: 800 kW

600 thousand tons/year slag powder production line

Equipment	Parameters
LRMS43.3 vertical mill for slag	Capacity: ≥90 t/h, Specific surface area of product: ≥420m²/kg, Power: 3150 kW
Hot-blast stove	Heating capacity: 1.8×107 kcal/h
Dust collector	Airflow: 360000 m³/h, Filter area: 7319 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 360000 m³/h Power: 1000 kW

800 thousand tons/year slag powder production line

Equipment	Parameters
LRMS46.3 vertical mill for slag	Capacity: ≥115 t/h, Specific surface area of product: ≥420m²/kg, Power: 3550 kW
Hot-blast stove	Heating capacity: 2.3×107 kcal/h
Dust collector	Airflow: 460000 m³/h, Filter area: 8782 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 460000 m³/h Power: 1250 kW

900 thousand tons/year slag powder production line

Equipment	Parameters
LRMS50.3 vertical mill for slag	Capacity: ≥130 t/h, Specific surface area of product: ≥420m²/kg, Power: 4000 kW
Hot-blast stove	Heating capacity: 2.6×107 kcal/h
Dust collector	Airflow: 520000 m³/h, Filter area: 10873 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 520000 m³/h Power: 1400 kW

1 million tons/year slag powder production line

Equipment	Parameters
LRMS53.3 vertical mill for slag	Capacity: ≥140 t/h, Specific surface area of product: ≥420m²/kg, Power: 4500 kW
Hot-blast stove	Heating capacity: 2.8×107 kcal/h
Dust collector	Airflow: 560000 m³/h, Filter area: 10873 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 560000 m³/h Power: 1600 kW

1.2 million tons/year slag powder production line

Equipment	Parameters
LRMS56.3 vertical mill for slag	Capacity: ≥170 t/h, Specific surface area of product: ≥420m²/kg, Power: 5400 kW
Hot-blast stove	Heating capacity: 3.4×107 kcal/h
Dust collector	Airflow: 680000 m³/h, Filter area: 13592 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 680000 m³/h Power: 1800 kW

1.5 million tons/year slag powder production line

Equipment	Parameters
LRMS63.3 vertical mill for slag	Capacity: ≥210 t/h, Specific surface area of product: ≥420m²/kg, Power: 6500 kW
Hot-blast stove	Heating capacity: 3.4×107 kcal/h
Dust collector	Airflow: 840000 m³/h, Filter area: 16310 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 840000 m³/h Power: 2240 kW

1.8 million tons/year slag powder production line

Equipment	Parameters
LRMS66.4 vertical mill for slag	Capacity: ≥250 t/h, Specific surface area of product: ≥420m²/kg, Power: 8000 kW
Hot-blast stove	Heating capacity: 5.0×107 kcal/h
Dust collector	Airflow: 1000000 m³/h, Filter area: 19880 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800g /Nm³ Outlet dust concentration: ≤30mg/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 1000000 m³/h Power: 2800 kW

2 million tons/year slag powder production line

Equipment	Parameters
LRMS70.4 vertical mill for slag	Capacity: ≥280 t/h, Specific surface area of product: ≥420 m²/kg, Power: 8500 kW
Hot-blast stove	Heating capacity: 5.6×107 kcal/h
Dust collector	Airflow: 1120000 m³/h, Filter area: 21400 m² Filtration velocity: 0.80～0.85 m/min Inlet dust concentration: ≤800 g/Nm³ Outlet dust concentration: ≤30m g/Nm³
Fan	Total pressure: 7200 Pa; Airflow: 1120000 m³/h Power: 3000 kW
