Bridge Crane with Grab Bucket

Bridge Crane with Grab Bucket
Bridge Crane with Grab Bucket
Bridge Crane with Grab Bucket
Request a Quote

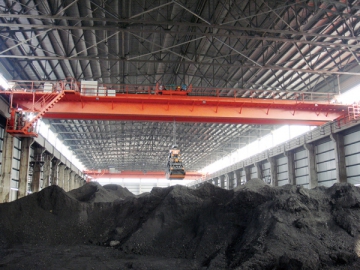

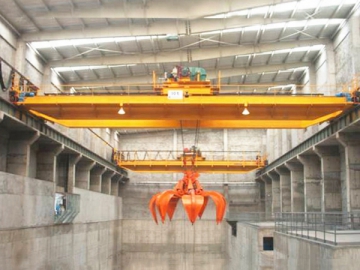

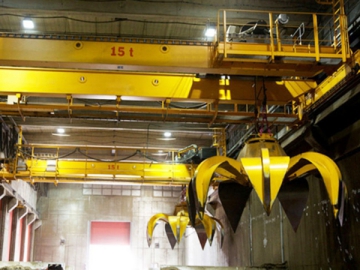

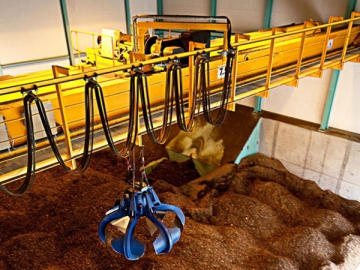

The lifting capacity of grab bridge crane is about 5-25 tons. It is widely used in power stations, warehouses, workshops, and ports for loading and unloading scattered objects. Grab bridge cranes are mainly used for medium to heavy lifting work.

Specification
Lifting capacity 5-25t
Lifting height 10-26m
Span 10.5-31.5m
Lifting speed 40.1-48.6 m/min
Trolley speed 87.3-113 m/min
Working class A6
Working temperature -25~40 °C
Power source three-phase, 380V 50HZ
Control mode Cabin control/remote control
Features
  • Mainly used for hoisting 5t~20t objects
  • The structure optimization of main beam is realized by computer design
  • Compact structure, light weight, good performance
  • Large span, high lifting height
  • Widely used in workshops, metallurgy, warehouses, assembly workshops
Tags
  • Heavy load equipment
  • lifting solutions
  • heavy lift system
  • hoisting machinery
