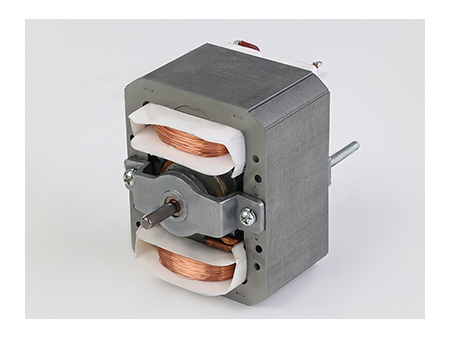

YJF 84 Shaded Pole Motor
Request a Quote
YJF 84 shaded pole motor is a 2 pole 3 speed motor that will run on 100-120V AC or 220-240V AC. It is widely used in range hoods, hand dryers and other appliances.
We also offer custom services like motor design and construction, optional configuration and logo printing.
Diagram
Certifications
Parameters
| TYPE | VOLTAGE | FREQUENCY | CURRENT | INPUT POWER | SPEED | ROTATION | STATOR THICKNESS (T) | SHAFT EXTENTION(B) | CERTIFICATE |
| V AC | Hz | A | W | R/MIN | MM | MM | |||
| YJF8420 | 220-240 | 50 | 0.68 | 62 | 2800 | CW/CCW | 20 | < 90 | CE |
| YJF8422 | 220-240 | 50 | 0.75 | 66 | 2820 | CW/CCW | 22 | < 90 | CE |
| YJF8425 | 220-240 | 50 | 0.8 | 70 | 2850 | CW/CCW | 25 | < 90 | CE |
| YJF8428 | 220-240 | 50 | 0.87 | 73 | 2880 | CW/CCW | 28 | < 90 | CE |
| 110-120 | 60 | 1.55 | 73 | 3490 | CW/CCW | 28 | < 90 | CE | |
| YJF8430 | 220-240 | 50 | 0.9 | 75 | 2900 | CW/CCW | 30 | < 90 | CE |
| YJF8433 | 220-240 | 50 | 0.92 | 80 | 2910 | CW/CCW | 33 | < 90 | CE |
| YJF8438 | 220-240 | 50 | 0.95 | 85 | 2920 | CW/CCW | 38 | < 90 | CE |
| YJF8442 | 220-240 | 50 | 1 | 90 | 2930 | CW/CCW | 42 | < 90 | CE |
