Extruded Aluminum Angles
Hentec is an ISO 9001:2000 certified corner aluminum extrusion manufacturer in China. We are able to provide a wide range of aluminum extrusions, like round tube, bar, square tube, etc.
The product on this page is our corner aluminum extrusion, which is available in various specifications to suit your various requirements. In general, the width and height of our corner aluminum extrusion range from 10mm to 185mm. Its thickness can be 1mm, 1.2mm, 2mm, 3mm, 5mm etc. We at Hentec can also manufacture our aluminum corner according to customers' drawings or samples.
Aluminium alloy: 6063-T5, 6063-T6, 6061-T6, 6005-T5 etc.
Surface treatment: mill finish, anodizing, electrophoresis, powder coating etc.
Extrusion equipment: 660~4000Ton
| NAME | A(mm) | B(mm) | T(mm) | EST.WEIGHT(kg/m) |
| L0289 | 12 | 12 | 1 | 0.063 |
| L0205 | 14 | 14 | 2 | 0.140 |
| L0290 | 15 | 15 | 1 | 0.079 |
| L0299 | 15 | 15 | 1.5 | 0.121 |
| L0261 | 15 | 15 | 2 | 0.163 |
| L02164 | 17 | 7 | 2 | 0.119 |
| L0232 | 18 | 14 | 2 | 0.170 |
| L0231 | 18 | 15 | 1 | 0.091 |
| L0291 | 19 | 19 | 1 | 0.101 |
| L0220 | 20 | 10 | 2 | 0.152 |
| L0233 | 20 | 14 | 2 | 0.181 |
| L0206 | 20 | 16 | 2.2 | 0.201 |
| L02104 | 20 | 20 | 1.3 | 0.144 |
| L0211 | 20 | 20 | 2 | 0.206 |
| L0201 | 20 | 20 | 2.5 | 0.254 |
| L0256 | 20 | 20 | 3 | 0.310 |
| L02159 | 25 | 10 | 1.2 | 0.110 |
| L0254 | 25 | 14 | 3 | 0.293 |
| L0210 | 25 | 20 | 2 | 0.233 |
| L0210D | 25 | 20 | 2.5 | 0.304 |
| L0292 | 25 | 25 | 1.2 | 0.159 |
| L02111 | 25 | 25 | 1.3 | 0.180 |
| L02105 | 25 | 25 | 1.5 | 0.207 |
| L0259 | 25 | 25 | 2 | 0.262 |
| L0214 | 25 | 25 | 3 | 0.394 |
| G405 | 25.9 | 25.9 | 1.4 | 0.190 |
| L0222 | 26 | 13 | 1.8 | 0.181 |
| L0221N | 28 | 20 | 2.5 | 0.325 |
| L0241 | 30 | 20 | 2 | 0.273 |
| L0204 | 30 | 20 | 3 | 0.382 |
| L0207 | 30 | 22 | 1.2 | 0.165 |
| L0218 | 30 | 25 | 4 | 0.553 |
| L02153 | 30 | 30 | 1.5 | 0.238 |
| L0257 | 30 | 30 | 3 | 0.470 |
| L0225 | 30 | 30 | 4 | 0.607 |
| L0227 | 30 | 30 | 5 | 0.745 |
| L0275 | 32 | 25 | 2 | 0.298 |
| L02161 | 32 | 32 | 2 | 0.336 |
| L0280 | 34 | 18 | 2 | 0.283 |
| L0281 | 34 | 25 | 2 | 0.323 |
| L0267 | 35 | 35 | 5 | 0.881 |

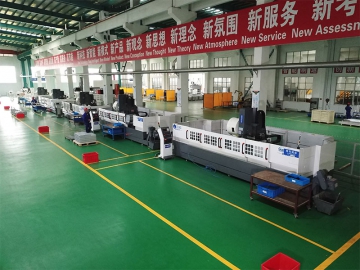

In order to ensure our product quality and increase our annual production, we make large investment in our equipment, including 25 aluminum extrusion lines, 3 powder spray coating lines and 1 fluorocarbon coating line from Germany and Taiwan. Hence, we can produce 800,000 tons of aluminum profiles every year, which enables us to ship customers their orders promptly.
We at Hentec provide a 15-year warranty on our aluminum solar panel frame, a 10-year warranty on our aluminum extrusions and profiles. So customers can feel secure in their purchase.
Today, our aluminium profiles and aluminium extrusions are used extensively in many countries worldwide, such as the USA, Canada, Russia, France, Germany, Dubai, South Africa, Argentina, Brazil, Vietnam, and so on.
If you are in need of our products, please contact us. Our staff will is ready and waiting to help you.
